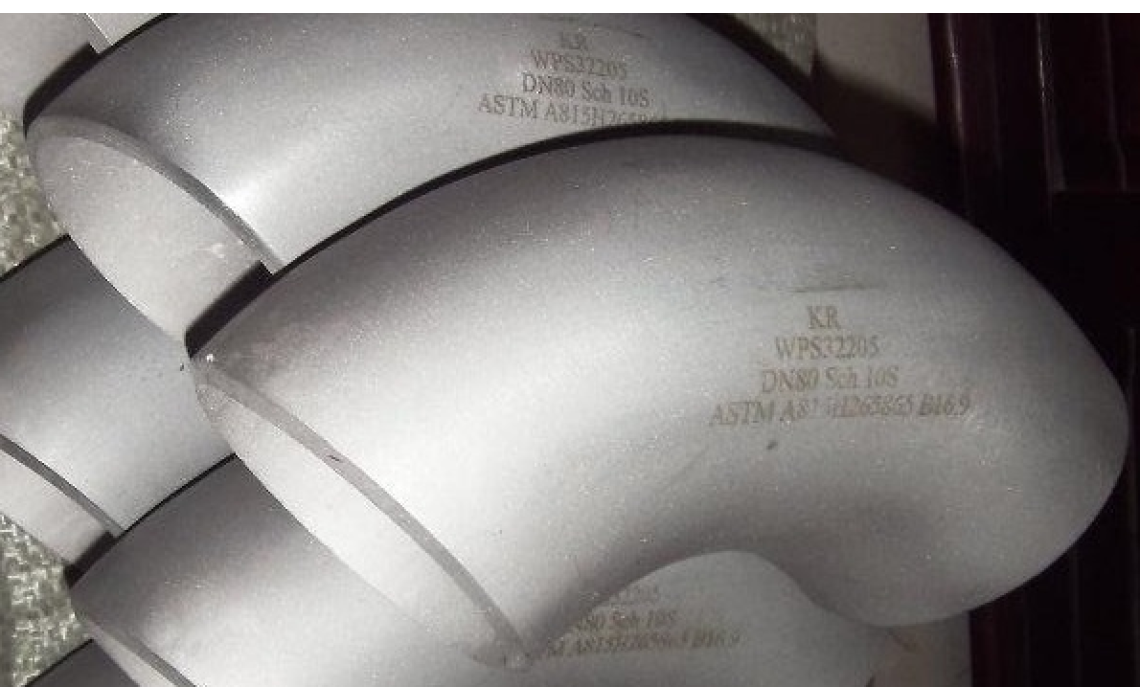

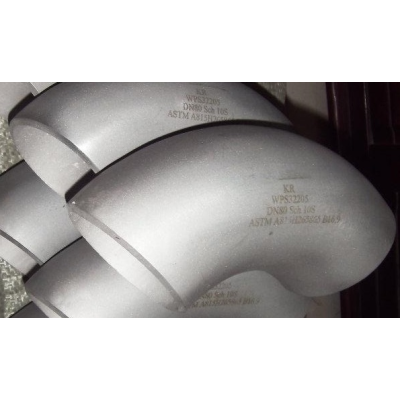

2205 Duplex Long Radius (1.5D) and Short Radius (1D) Elbows: Features and Applications

In industrial applications requiring corrosion resistance and durability, 2205 Duplex elbows, particularly in long and short radius options, stand out. In this article, we will explore in detail the features, advantages, and applications of 2205 Duplex Long Radius (1.5D) and Short Radius (1D) elbows.

What is a 2205 Duplex Elbow?

2205 Duplex (dual-phase) stainless steel is a material known for its high strength and corrosion resistance. It is especially preferred in environments with saltwater, chemicals, and high pressure. Long radius (1.5D) and short radius (1D) elbows are critical fittings used to change the direction of flow in piping systems.

Features of 2205 Duplex Long Radius (1.5D) Elbow

• 1.5D radius: The wider bend radius allows fluid to pass with less resistance.

• Low pressure drop: Minimizes turbulence and pressure loss due to the long radius.

• High durability: Resistant to chemical and thermal shocks.

• Applications: Oil & gas, seawater desalination, chemical industry, and high-pressure systems.

Features of 2205 Duplex Short Radius (1D) Elbow

• 1D radius: Compact design enables easy installation in tight spaces.

• High pressure resistance: Despite the short radius, Duplex material ensures high strength.

• Cost-effective solution: Uses less material, making it economical.

• Applications: Confined piping systems, HVAC systems, food and pharmaceutical industries.

Advantages of 2205 Duplex Elbows

✔ Corrosion resistance – Superior resistance to chlorides and acids.
✔ Mechanical strength – Reliable performance under high pressure and temperature.
✔ Long service life – Low maintenance and long-term durability.
✔ Eco-friendly – Recyclable material.

2205 Duplex long and short radius elbows provide tailored solutions for different industrial needs. While 1.5D elbows offer efficient fluid dynamics, 1D elbows provide practicality in compact systems. By choosing the right type based on your project requirements, you can enhance system efficiency.

For more information or to place an order for 2205 Duplex elbows, feel free to contact us!
