Stainless Steel Camlock Couplings: Where Durability Meets Efficiency

In industrial facilities, operational efficiency is largely defined by the speed and reliability of fluid transfer systems. Stainless steel camlock couplings (also known as cam and groove couplings) allow for the quick, leak-proof connection of hoses and pipe networks within seconds, without the need for complex tools.

But why should stainless steel be your primary choice over other materials? In this article, we explore the technical advantages and types of camlock fittings.

What is a Camlock Coupling System?

Camlock adapters are rapid connection fittings that operate using a "cam arm" mechanism, requiring no wrenches or specialized equipment. By inserting the male adapter into the female coupler and closing the arms, a high-pressure, airtight seal is achieved.

Why Choose Stainless Steel (SS316 / SS304)?

While camlocks are available in aluminum, brass, or polypropylene, Grade 316 Stainless Steel is engineered for the most demanding environments:

Corrosion Resistance: Superior resistance to oxidation when handling acidic, salty, or highly chemical fluids.
Temperature Tolerance: Maintains structural integrity under extreme thermal fluctuations.
Hygiene Standards: Essential for food and pharmaceutical industries due to its non-porous surface that prevents bacterial growth.
Mechanical Strength: Highly resistant to physical impact and high-pressure surges compared to other materials.

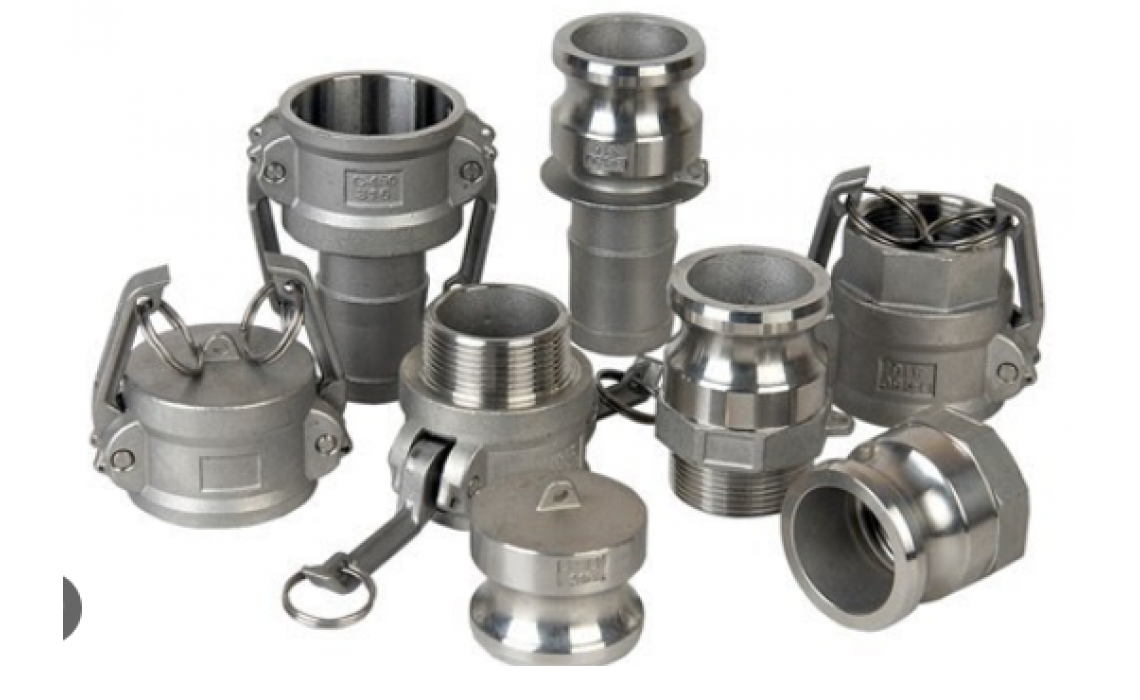

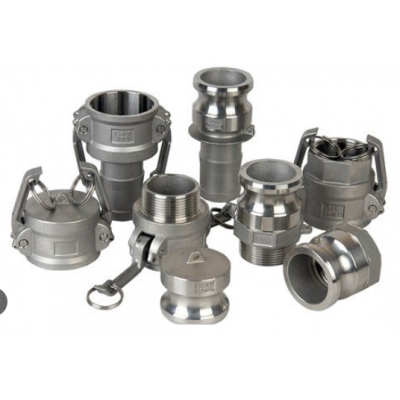

Camlock Types and Applications

Camlock fittings are classified by alphabetical codes based on their connection style. Choosing the right unit is critical for system performance:

Type	Description	Application
Type A	Male Adapter x Female Thread	For adding a male end to pipe headers.
Type B	Female Coupler x Male Thread	For connecting hose ends to fixed pipes.
Type C	Female Coupler x Hose Shank	Features a serrated tail for direct hose insertion.
Type D	Female Coupler x Female Thread	The most common female connection unit.
Type E	Male Adapter x Hose Shank	Male end for hose assembly.
Type F	Male Adapter x Male Thread	For mounting the adapter into a threaded port.
DC & DP	Dust Cap & Dust Plug	Prevents contamination when the system is idle.

The Value of Investing in Stainless Steel Camlocks

Leak-Proof Performance: When the internal gasket (typically NBR, EPDM, or Viton) meets the rigid structure of stainless steel, it prevents leaks even under significant pressure.
Long-Term Investment: Although the initial cost is higher than plastic or aluminum, the reduced replacement frequency makes it far more economical over time.
Workplace Safety: The quick-locking mechanism minimizes operator error and spill risks during the transfer of hazardous chemicals.

Key Considerations for Selection

Pressure Rating: Ensure the coupling can handle the maximum system pressure.
Gasket Compatibility: The gasket material must be compatible with the fluid (oil, acid, water, etc.) being transferred.
Sizing Precision: Standard sizes range from 1/2" to 6"; choosing the precise fit is vital for safety.
